QXL forced circulation hot water boiler

Release time：2020-05-28 10:16viewed：times

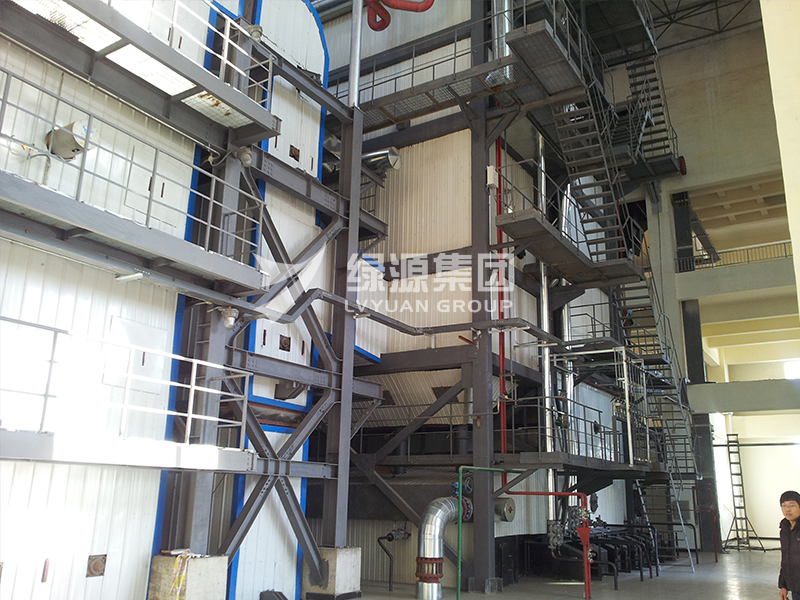

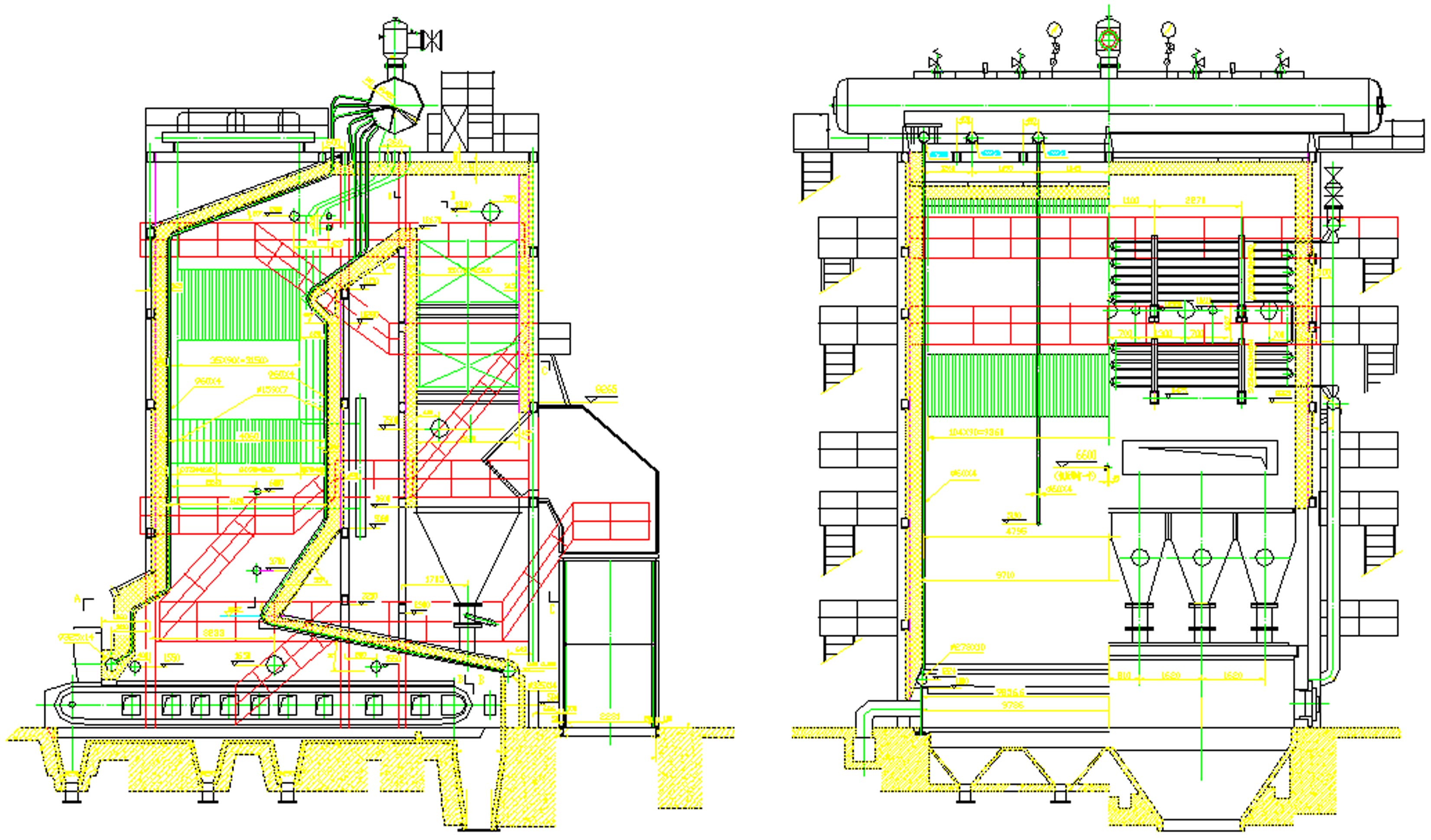

Structure introduction:

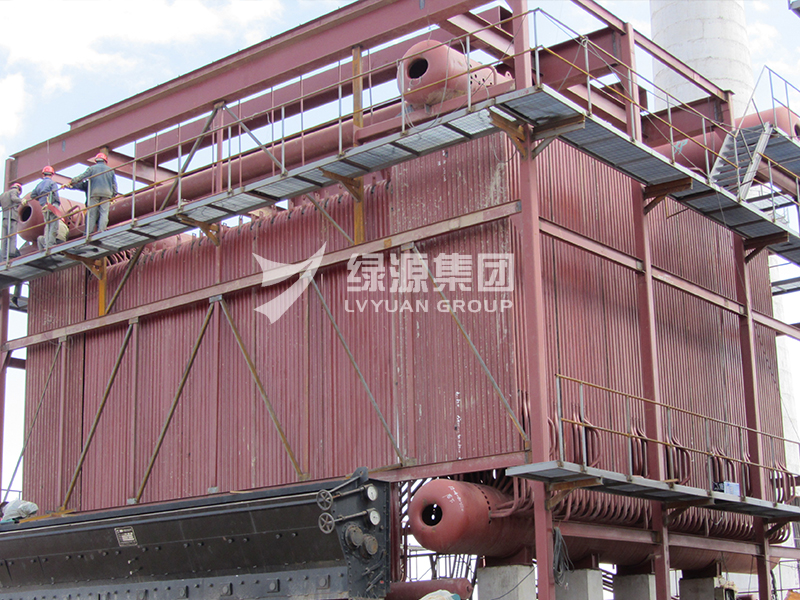

Yingkou luyuan boiler is A class A boiler manufacturer. It is A single-pot forced circulating hot water boiler.The water cooling wall of the furnace is a membrane water cooling screen structure. 1-3 water cooling screens are arranged in the furnace. Steel serpentine tube is used for the convection tube bundle.

Main features:

1. Tall furnace, large combustion space, good separation of dust inertia.

2. The middle water cooling screen is arranged in the furnace, and the temperature field in the furnace is even.

3. The furnace is equipped with a three-stage dust removal device, equipped with a folding Angle, finning type slag cooling pipe and tail louver. The dust discharge concentration at the rear of the boiler is low.

4. The furnace adopts membrane water cooling wall, and the thermal efficiency of the boiler is high, both exceeding 82%.

5. Convection heating surface using ф 51 serpentine GuanShun column layout, less dust, heat transfer effect is good.

6. The steel frame is designed to resist magnitude 8 earthquake intensity. There are platforms near the door holes, which are arranged symmetrically to facilitate boiler operation and maintenance.

serial	boiler type	fuel consumption (kg/h)	Design efficiency (%)	factory way	External dimension （L×W×H）
serial	boiler type	fuel consumption (kg/h)	Design efficiency (%)	factory way	External dimension （L×W×H）
1	QXL29-1.6/150/90-AII	6332	83.10	bulk	12510×9400×13123
2	QXL29-1.6/130/70-AII	6505	83.20	bulk	12510×9400×13123
3	QXL46-1.6/150/90-AII	9945	82.90	bulk	15410×7970×15692
4	QXL58-1.6/150/90-AII	10919	83.40	bulk	16063×9310×17472
5	QXL64-1.6/150/90-AII	12053	83.37	bulk	16500×9310×17472
6	QXL70-1.6/150/90-AII	15460	83.10	bulk	16060×10340×17472
7	QXL84-1.6/150/90-AII	18468	83.30	bulk	18990×11370×19000
8	QXL91-1.6/150/90-AII	20183	82.56	bulk	18990×12400×19000
9	QXL116-1.6/150/90-AII	22378	83.29	bulk	17000×19690×18900
